Panasonic PT-VMZ51 LCD High Brightness Full HD Laser Projector
Panasonic PT-VMZ51 LCD High Brightness Full HD Laser Projector
Couldn't load pickup availability

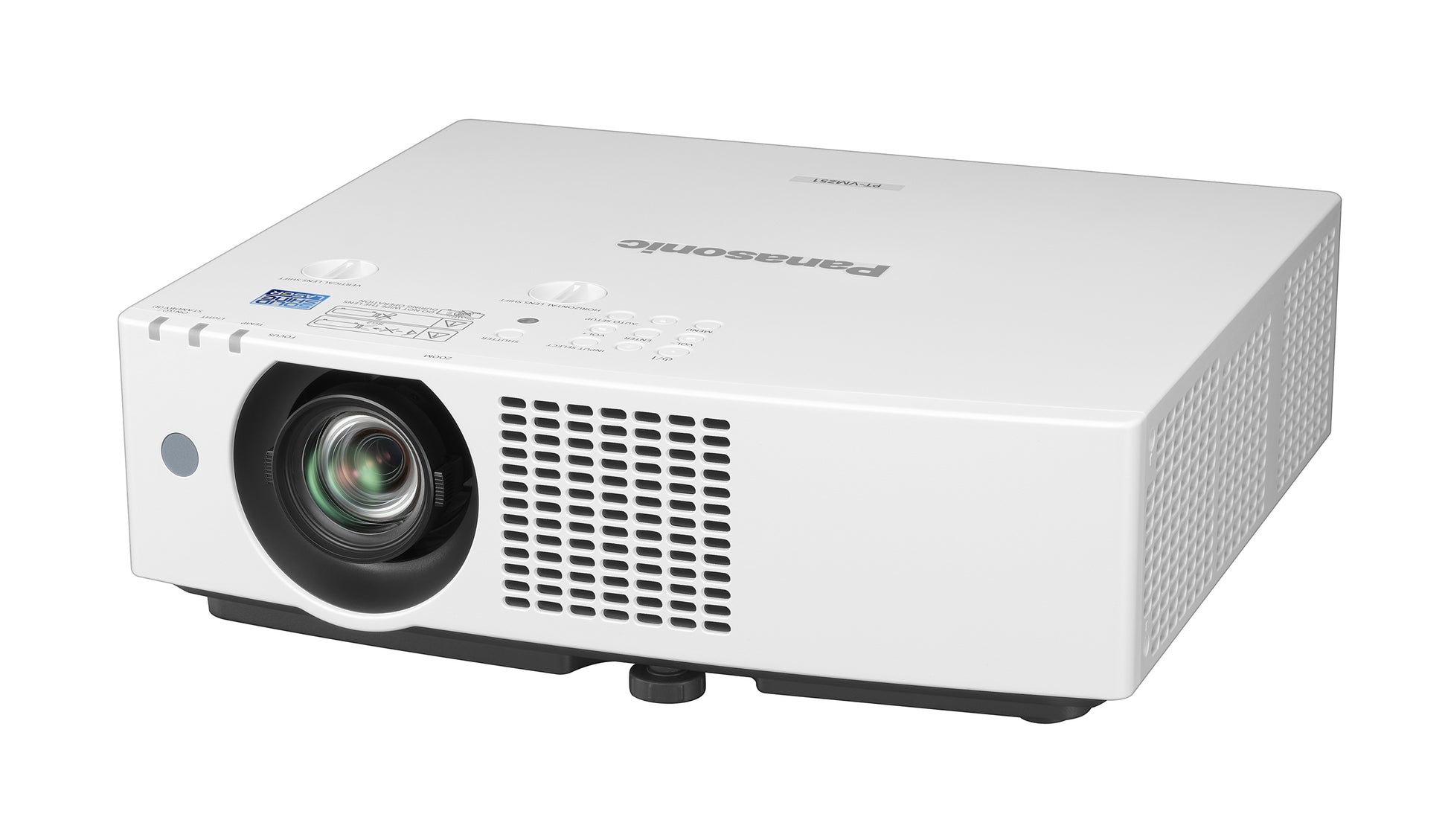

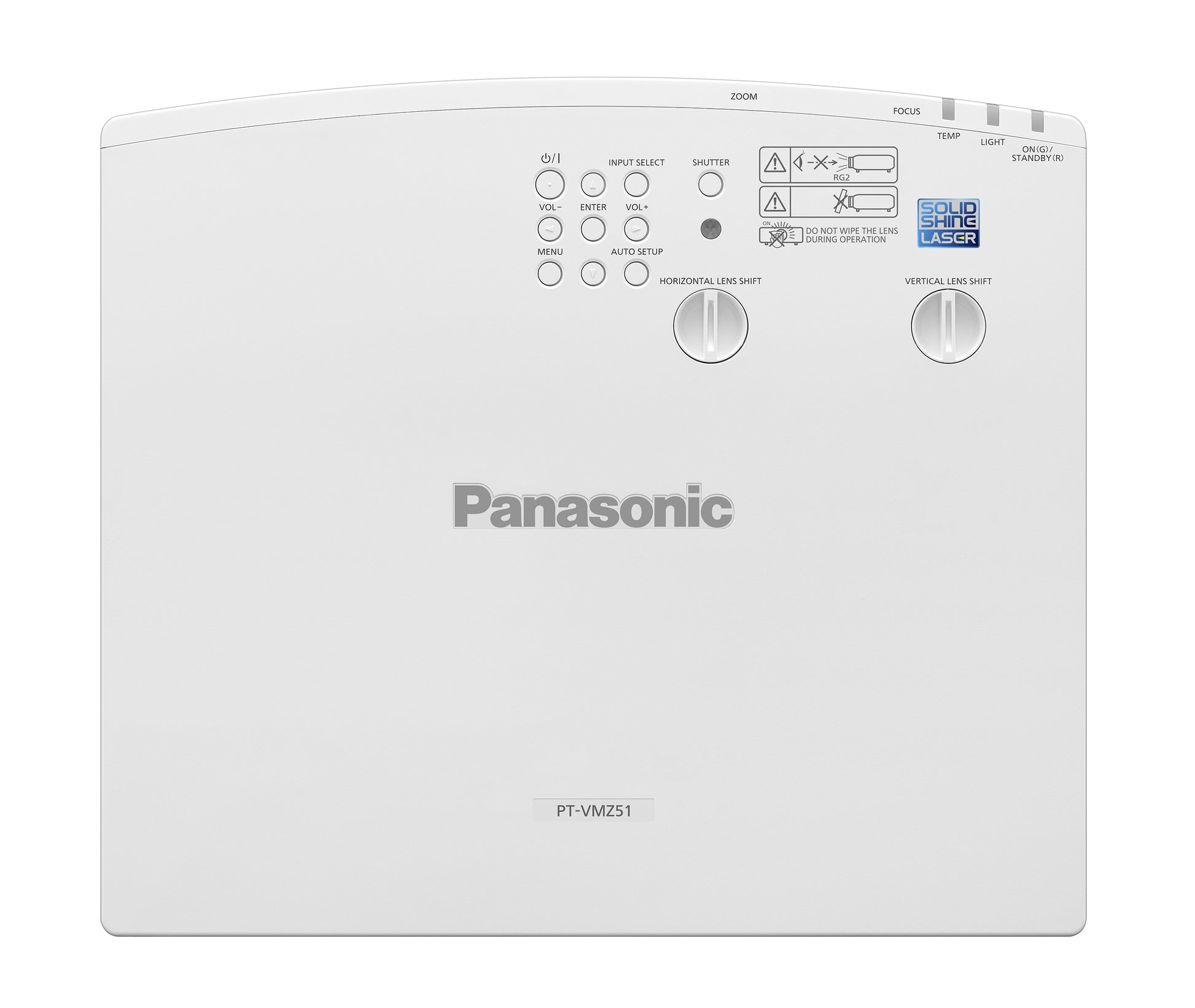

Panasonic PT-VMZ51 Laser Projector
The PT-VMZ51 produces an impressive 5200 ANSI lumens brightness great in a bright room and large conference room. The laser light source is perfect for high use environments with a life up to 24,000 hours it can be simply abused with 8 hours of use per day every day of the year and still last over 8 years. With a wide ranging 1.6x optical zoom the PT-VMZ51 is also a great candidate to replace an older lamp projector in the same position without having to worry about rewiring. Panasonic have also backed it up with a stellar warranty for 5 years or 10,000 hour of use for long term peace of mind.

Bright, Color-Rich Images with High Contrast
Vivid Images in Bright Environments
SOLID SHINE Laser phosphor drive with advanced LCD optical engine projects bright, vivid, and detailed images regardless of artificial light levels in the room. Text is finely resolved, while graphics and video retain high color saturation and contrast for immersive viewing.
High Brightness from a Compact Body
Deploy up to 5,200 lm of brightness from a projector weighing just 7.2 kg, currently the smallest and lightest LCD laser projector series in the world*1. High brilliance makes pictures pop even under the glare of interior lights, making projection more engaging than ever.
High 3,000,000:1 Contrast
High-precision digital laser light output modulation achieves 3,000,000:1 dynamic contrast while minimizing power consumption. High-contrast performance adds depth, dimensionality, and realism to video, defining details in shadows even when bright and dark scenes frequently interchange.

Bright, High-Visibility Images in Well-Lit Spaces
Because office and classroom projectors are used with the room lights on and window blinds open, they need high light output to produce a bright image. Thanks to a carefully refined optical engine, the PT-VMZ51 generates up to 5,200 lm of brightness, more than most professional projectors of a similar size. Dim, washed out projections are history: expect big, bright, vivid pictures in bright environments to stimulate viewer engagement with the lesson or meeting content.
New 6-Point Screen Adjustment for Projection into Room Corners
The PT-VMZ51 is the first Panasonic projector to feature 6-Point Screen Correction. It allows you to perform 4-Corner and Horizontal/Vertical Keystone Correction via remote control to remove trapezoidal distortion when projecting from an angle, such as a high ceiling. An extra two control points located at center top and bottom of the screen can be used to remove distortion when projecting an image into the corner of a room.
New Digital Zoom Extender Function
In some cases, the throw-distance required to produce an image at the desired size might exceed the projector’s optical zoom range. Panasonic answers the problem with a new Digital Zoom Extender function equipped for the first time on the PT-VMZ51. It provides a convenient way to fit the image to your screen beyond optical zoom range, reducing the need to relocate your projector mounts and potentially saving you time, money, and hassle on your next refreshment cycle.

Easy Installation, Simple Setup
1.6x Zoom Lens and Lens Shift Function
The 1.6x zoom lens with flexible 1.09 –1.77:1 throw-ratio enables large-format projection from close up or far away from the screen: ideal for permanent installation in large or small rooms. Wide-range Vertical/Horizontal Lens-Shift aligns the image to fit the projection surface in moments. This is handy when the projection position is too high, too low, or off-center.

Supports 4K signal input*3
The PT-VMZ51 Series supports 4K/30p signal input*3 via HDMI®or DIGITAL LINK*2 terminals, enabling seamless integration into existing or planned 4K-ready system infrastructure.

Single-Cable DIGITAL LINK*2 Solution
A dedicated DIGITAL LINK*2 terminal transmits AV and control signals via LAN cable for up to 150 m (492 ft)*8 and 4K video for up to 50 m (164 ft)*9. Optional DIGITAL LINK Switcher*10 and Digital Interface Box*10 reduce complexity, acting as a hub for connected sources and routing signals to the projector via one cable. A separate LAN terminal offers dedicated control interface if preferred.


Horizontal, Vertical, and Corner Keystone Correction
Manual keystone adjustment fits the image to the screen when projecting from an unusual angle. Curved Screen Correction removes barrel or pincushion distortion for natural projection onto curved surfaces.
.The People-Friendly Projector
Get a smooth start to classes and meetings: two CEC command compatible5 HDMI® inputs enable projector ON/OFF with the source device, and images appear quickly thanks to Quick On/Quick Off laser design. The projectors support 4K input signals6 via HDMI and DIGITAL LINK7 to simplify system construction and projector integration.
Power Consumption Reduced 20%
Select PT-VMZ51 use about 20% less energy than models in the previous series. Efficiency is further increased, and brightness optimized to ambient light levels, by pressing the ECO9 button on the remote. A change to Panasonic projection will reduce waste, save money, and contribute to your CSR environmental policy objectives.
Other Features
- Low maintenance with 20,000-hour filter and light-source replacement
- Free 360° installation
- Built-in 10 W speaker, mic input, and audio output
- Multi Monitoring & Control Software with Optional Early Warning functions11
- Compatible with PJLink™, Crestron Connected™, and AMX DD
- Built-in shutter function
- ECO Management System with 0.5 W Standby
- Emulation Mode
- Startup Logo Function


PROJECTOR TYPE: LCD projector
LCD Panel:
Panel size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display System
Transparent LCD panel (x 3, R/G/B)
Drive Method Active matrix
Pixels : 2,304,000 (1920 x 1200) pixels
Light source: Laser diodes
Light output*1*2: 5,200 lm
Time until light output declines to 50 %*3:
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution
WUXGA (1920 x 1200 pixels)
Contrast ratio*1
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal)
0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens
1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm
LENS SHIFT
(From the origin point of the lens mounter)
Vertical
+44 %, 0 % (manual)
Horizontal
+20 %, -20 % (manual)
Keystone correction range Vertical: ±25 °, Horizontal: ±35 °
Installation
Ceiling/floor, front/rear, free 360-degree installation
TERMINALS
HDMI IN
HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported
Computer 1 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Computer 2 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
AUDIO 1/2 IN
M3 stereo mini-jack x 2
Variable Audio Out
M3 stereo mini-jack x 1
Serial In
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
DIGITAL LINK/LAN
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)
(HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],
HDCP, Deep Color, 4K/30p*4 signal input)
LAN
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]
USB(VIEWER/WIRELESS/DC OUT)
USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5)
POWER SUPPLY AC 100 V–240 V, 50/60 HZ
Power consumption
320 W (TBD)
Cabinet materials
Molded plastic
Filter*6 Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1
37 dB (NORMAL/ECO), 27 dB (QUIET)
Dimensions
(W x H x D)
399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts)
399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)
Weight with supplied lens*7
Approx. 6.5 kg (14.33 lbs)
Operating environment
Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation)
Applicable software
Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*10, Wireless Projector App for iOS/Android™*11
